FXS VoIP Gateways

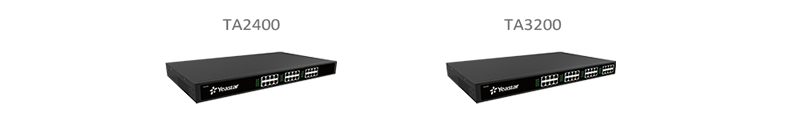

TA Series FXS VoIP Gateway
VoIP Gateway FXS Yeastar TA là các sản phẩm tiên tiến kết nối điện thoại Analog, máy fax và hệ thống PABX với mạng điện thoại voip và hệ thống tổng đài IP. Với các chức năng phong phú và cấu hình dễ dàng, Gateway FXS TA là sản phẩm lý tưởng cho các doanh nghiệp trung tâm thương mại muốn tích hợp hệ thống điện thoại truyền thống vào bất kỳ hệ thống IP nào, bao gồm cả tổng đài IP Yeastar S-Series
Các cổng FXS riêng biệt đầy đủ các tính năng SMB
Hoàn toàn tương thích với nền tảng VoIP linh hoạt gọi
Feature-rich
A robust feature set that fulfills your various needs and cuts communication cost
Easy
Simple and intuitive Web-based configuration saves you loads of time
Reliable
Stable with advanced hardware and software architecture
Interoperability
Interoperable with a broad list of softswitch, PBX, and IP-PBX like Elastix and Lync Server
| Models | TA400 | TA800 | TA1600 | TA2400 | TA3200 | |
| RJ11 FXS Ports | 4 | 8 | 16 | 24 | 32 | |
| RJ 21 Ports | 一 | 一 | 1 | 1 | 2 | |
| LAN | 1 10/100Mbps | |||||
| Protocol | SIP (RFC3261), IAX2 | |||||
| Transport | UDP, TCP, TLS, SRTP | |||||
| Codec | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM | |||||
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC | |||||
| DTMF Mode | RFC2833, SIP Info, In-band | |||||
| Fax | T.38 and Pass-through | |||||
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging | |||||
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN | |||||
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH | |||||
| Management Protocol | RADIUS, TR-069 | SNMP, RADIUS, TR-069 | ||||
| Signaling | FXS Loop Start, FXS Kewl Start | |||||
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | |||||
| Disconnect Methods | Busy Tone, Polarity Reversal | |||||
| Power | 12V, 1A | AC 100-240V (12V 5A) | ||||
| Dimensions (L × W × H) (mm) | 200 × 137 × 25 | 440 × 250 × 44 | ||||
| Operation Range | 0°C to 40°C, 32°F to 104°F; | |||||
| Storage Range | -20°C to 65°C, -4°F to 149°F | |||||
| Humidity | 10-90% non-condensing | |||||
| Mounting | Desktop, Wall-mount | Desktop, Rack-mount | ||||
| Compatibility | Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft | |||||
- 3-way Conference
- Attack Alert
- Auto Provisioning with Yeastar IP-PBX
- Blind Transfer
- Caller ID Display
- Call Waiting
- Firewall
- Hotline
- IP Blacklist
- Nat Traversal
- Radius Accounting & Login
- Speed Dial
- TR-069
- Web-based Management
- API
- Attended Transfer
- Backup and Restore
- Call Detail Records
- Call Forward (Always, Busy, No Answer)
- Do Not Disturb
- Firmware Upgrade by HTTP/TFTP
- Hunting Groups
- MWI (FSK, Neon, Polarity Reversal)
- Packet Capture Tool
- SNMP
- System Logs
- Voice Menu for Basic Configuration
MÔ HÌNH ỨNG DỤNG
Analog Extensions for IP-PBX
VoIP Enabling the Hotels with TA
Connect Legacy PBX with SIP Trunkings
Analog Extensions for IP-PBX
By connecting analog phones and fax machines directly to the FXS ports of TA series gateways, or TA series analog telephony adapters, analog phones are enabled to work as extensions of the IP-PBX. Without additional investment on expensive IP phones, enterprises could access VoIP networks with the cheap analog phones

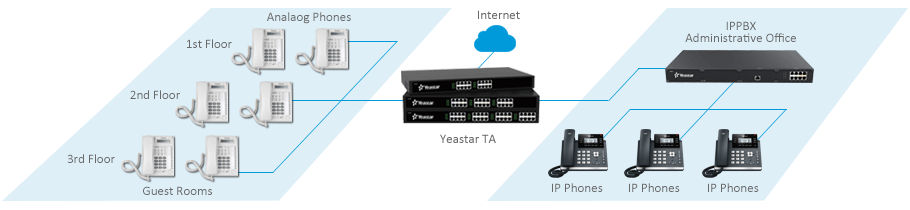

VoIP Enabling the Hotels with TA
TA series immediately connects legacy equipment to cost-saving SIP trunkings. You could also connect analog phones and fax machines to SIP trunkings with TA series. Besides preserving investment on legacy equipment, enterprises could also utilize the benefit of VoIP easily and conveniently.

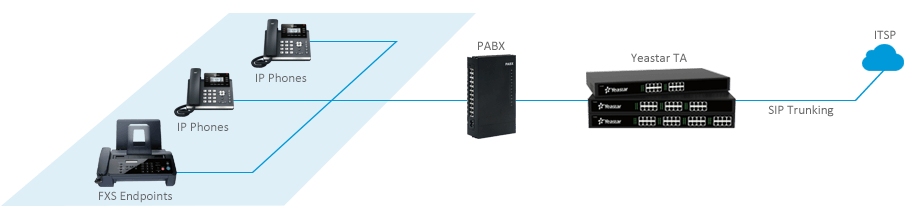

Connect Legacy PBX with SIP Trunkings
TA series connect existing analog guest phones to the VoIP network that delivers guest communications with crystal clear voice call, MWI (Message Waiting Indicator) support. For hotels that wish to keep the existing hotel phones, introducing TA FXS Gateway would be a cost-effective and trouble-free solution
