E1/T1/PRI VoIP Gateway
TE Series E1/T1/PRI VoIP Gateway
Cổng VoIP VoIP E1 / T1 / J1 (VoIP tới E1 / T1 / J1 và E1 / T1 / J1 đến VoIP) hỗ trợ tới 30/60 cuộc gọi đồng thời. TE Sereis cung cấp cho SMB chi phí hiệu quả bổ sung cho một hệ thống điện thoại di sản để mang lại những lợi ích thực sự của VoIP. Cổng VoIP ISDN của Yeastar thu hẹp khoảng cách giữa các kết nối điện thoại ISDN truyền thống như giao diện RJ-48c / T1 thông thường để cung cấp âm quay số cho hầu hết các hệ thống điện thoại VoIP PBX bao gồm cả Yeastar IP PBX.
Cổng E1 / T1 / J1 có thể cấu hình phần mềm
Hỗ trợ PRI, MFC R2, SS7, E & M
Định tuyến cuộc gọi hiệu quả về chi phí
Feature-rich
A robust feature set that fulfills your various needs and cuts communication cost
Easy
Easy-to-navigate GUI and simple installation saves you loads of time
Reliable
Stable with advanced hardware and software architecture
Compatibility
Compatible with various ISDN PBX, IP-PBX, and softswitch. Interoperable with Elastix and Lync Server
| Models | TE100 | TE200 | ||||
| E1/T1/J1 Ports (Support PRI, MFC R2, SS7, E&M) | 1 | 2 | ||||
| Protocol | SIP (RFC3261) | |||||
| Transport Protocol | UDP, TCP, TLS, SRTP | |||||
| Codec | G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex | |||||
| Echo Cancellation | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer | |||||
| DTMF Mode | RFC2833, SIP Info, In-band | |||||
| Network | DDNS, Firewall, PPPoE, Static IP, QoS, Static Route | |||||
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH | |||||
| PRI switch types | Euro ISDN, nation, Q.SIG | |||||
| CAS | MFC R2 (Argentina, Brazil, China, Czech Republic, Colombia, Ecuador, Indonesia, ITU, Mexico, Philippines, Venezuela) | |||||
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | |||||
| SS7 | ITU, ANSI, China | |||||
| LAN | 1 10/100Mbps | 1 10/100/1000Mbps | ||||
| WAN | 1 10/100Mbps | 1 10/100/1000Mbps | ||||
| USB | 1 | |||||
| Power Supply | AC 100-240V (12V 2A) | |||||
| Dimensions (L × W × H) (mm) | 213 x 160 x 44 | |||||
| Operation Range | 0°C to 40°C, 32°F to 104°F; | |||||
| Storage Range | -20°C to 65°C, -4°F to 149°F | |||||
| Humidity | 10-90% non-condensing | |||||
- Blacklist
- Call Duration Limitation
- Caller ID Prefix
- Call Routing Rules
- E1/T1/J1 Diagnostics
- Firmware Upgrade by HTTP/TFTP
- NAT Traversal
- T.38 fax
- SIP Trunk Support
- SIP Registrar for IP phones
- Web-based Configuration
- Call Detail Record (CDR)
- Caller ID
- Configure backup/restore
- Custom Prompts
- Firewall
- IP Blacklist
- Packet Capture Tool
- Trunk Group
- SIP Peer Mode
- System Logs
MÔ HÌNH ỨNG DỤNG

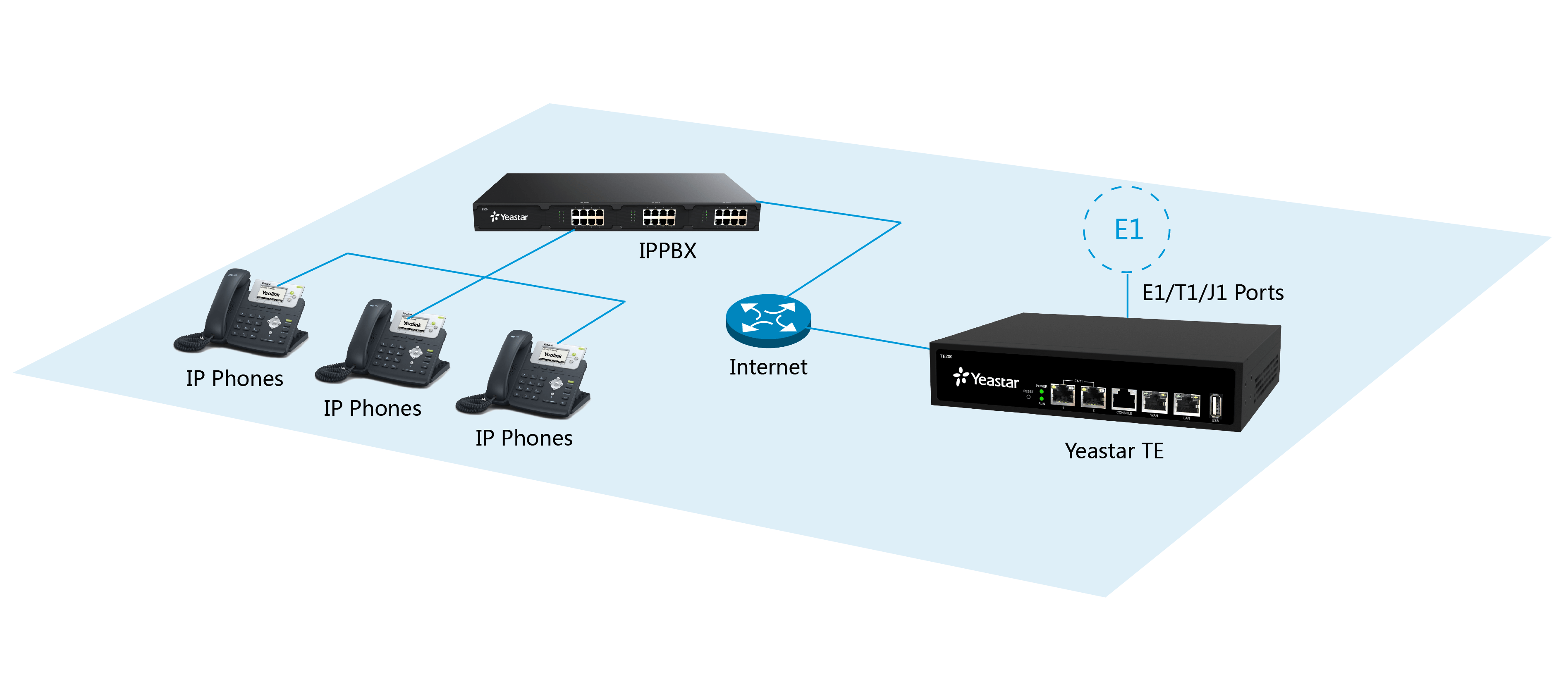

E1/T1/PRI Lines for IP-PBX
TE Series PRI VoIP Gateway provides an easy and trustworthy conjunction of IP-based system and E1/T1/PRI line. It is suitable when the local IP telephony network is constructed gradually in an institution that already has a legacy E1/T1/PRI network. Any SIP-based VoIP infrastructure, including IP-PBX, hosted IP-PBX, VoIP call center could benefit from this conjunction
Connect Legacy Equipment to VoIP
Yeastar TE can connect legacy equipment to cost-saving SIP trunkings. You could also connect analog phones and fax machines to SIP trunkings with TE series. Besides preserving investment on legacy equipment, enterprises could also utilize the benefit of VoIP easily and conveniently.
